‹ Home › Inventory › FLHTKSE 2021 CVO™ Limited

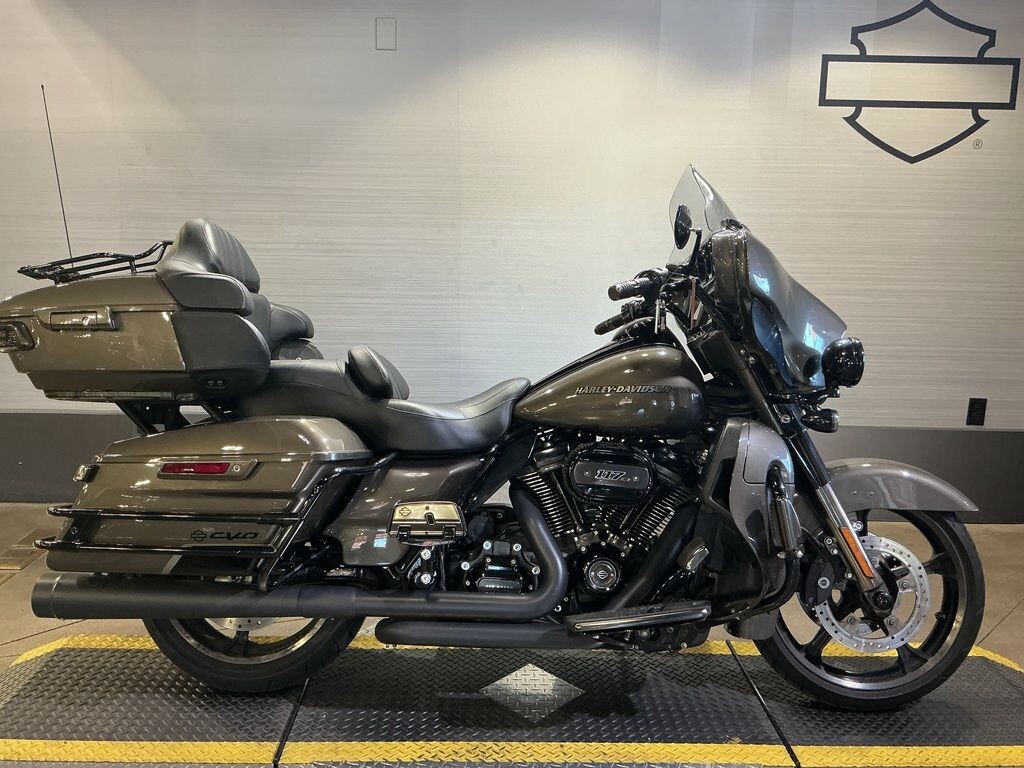

2021 Harley-Davidson® CVO™ Limited The ultimate in long-range touring and luxury. Features best-in-class power and advanced technology. Features may include: THIS IS THE RIGHT BIKE FOR Riders that demand a one-of-a-kind touring experienceBold styling with premium paint and Tomahawk™ wheelsTwin-Cooled™ Milwaukee-Eight® 117 engine and heated gripsMILWAUKEE-EIGHT® TWIN-COOLED™ 117 ENGINE The most powerful V-Twin engine ever offered from the H-D® factory| and only available in CVO™ models. Features colour accented Rocker Box Lowers with Blaze Red finish. PREMIUM PAINT AND FINISHES Exclusive paint colors and designs executed to a level of intricate quality that is unmatched in the motorcycle and automotive categories. BOOM!™ GTS INFOTAINMENT SYSTEM An evolved interface experience that offers a contemporary look| feel and function| with exceptional durability and features designed specifically for motorcycling. Every element is optimized to enhance the rider’s interaction with the bike and connectivity with the world. DAYMAKER® ADAPTIVE LED HEADLAMP The most-advanced headlamp system ever developed for a Harley-Davidson® motorcycle. Features a signature LED light outer ring that operates as a position lamp| and additional LED lights that activate based on the lean of the bike to project light into corners to illuminate areas of the road that are unlit by traditional LED headlamps. HIGH-PERFORMANCE TOURING SUSPENSION Dual bending valve front suspension and emulsion rear suspension with hand-adjustable pre-load put you in control of a plush ride. CUSTOM TOURING STYLE Full-on custom treatment from fender to fender. You get custom seat covers and stitching| Tomahawk Front 19-inch and Rear 18-inch wheels| Kahuna™ Collection components—the list goes on. WIRELESS HEADSET The Boom!™ Audio 30K Bluetooth® headset lets you call hands-free on your Bluetooth® mobile phone| listen to stereo music or voice instructions of GPS navigation and have intercom conversations with your passenger or fellow riders.

Specifications

Dimensions

add remove
- Length:

  102.4 in
- Seat height, unladen:

  29.9 in
- Ground clearance:

  4.9 in
- Rake (steering head):

  26
- Trail:

  6.7 in
- Wheelbase:

  64.0 in
- Tires, front specifications:

  BW 130/60B19 61H
- Tires, rear specifications:

  BW 180/55B18 80H
- Fuel Capacity:

  6.0 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  906 lbs
- Weight, in running order:

  944 lb
- Luggage capacity – volume:

  4.7 cu ft (0.132 m3)
Engine

add remove
- Engine:

  Twin-Cooled™ Milwaukee-Eight® 117
- Bore:

  4.1 in
- Stroke:

  4.5 in
- Displacement:

  117.35 in³
- Compression ratio:

  10.2:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  Dual, with crossover
Performance

add remove
- Engine torque testing method:

  EC 134/2014
- Engine torque:

  122.4 ft-lb
- Engine torque (RPM):

  3500
- Lean angle, right (deg.):

  34.3
- Lean angle, left (deg.):

  33.4
- Fuel economy testing method:

  EU 134/2014
- Fuel economy:

  0.02 mpg
- CO₂ emissions testing method:

  EU 134/2014
- CO₂ emissions :

  146 g/km CO2
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.593
- Gear ratios (overall) 2nd:

  6.65
- Gear ratios (overall) 3rd:

  4.938
- Gear ratios (overall) 4th:

  4
- Gear ratios (overall) 5th:

  3.407
- Gear Ratios (overall) 6th:

  2.875
Chassis

add remove
- Wheels, optional style type:

  Gloss Black and Contrast Smoked Satin Tomahawk
- Wheels, front type:

  Gloss Black and Contrast Chrome Tomahawk
- Wheels, rear type:

  Gloss Black and Contrast Chrome Tomahawk
- Brakes, caliper type:

  32 mm, 4-piston fixed front and rear
Electric

add remove
- Lights (as per country regulation), indicator:

  Headlight, running lights, directional lights, neutral, low oil pressure, check engine, turn signals, security/fault indication,gear indication, neutral, low fuel warning, cruise control, ABS, Low Tire Pressure/TPMS indicator, Traction Control, Rain Mode,
- Gauges:

  - Custom gauges styled to complement each CVO vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators.
Infotainment

add remove
- Infotainment system:

  Boom!™ Box GTS
- Type:

  Full Color TFT
- Watts per channel:

  75
- Speakers:

  4
- Speaker size:

  Boom! Audio Stage I
- Headset specifications (if equipped):

  Boom! Audio 30K Wireless Headset
- AM:

  Standard
- FM:

  Standard
- Weather Band (WB):

  Standard
- SD Card, Flash Drive and MP3 — via USB Connection:

  Supported
- Sirius^XM Presets:

  20 - P&A Upgrade (USA & Canada only)
- Languages:

  English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic
- Hands-free mobile phone — via Bluetooth:

  Standard
- Voice Recognition Languages: Phone functions only:

  English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic
- Voice Recognition Languages: Tuner / Media / Navigation:

  English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic
- Text-to-Speech (TTS) languages:

  English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic
- Rider / passenger intercom:

  Standard (Passenger Headset Sold Seperately)
- Vehicle information screen:

  Standard
- USB:

  USB/MTP/iPod/iPhone
- Bluetooth:

  Phone/Media Supported
