‹ Home › Inventory › FLTRXSE 2024 CVO™ Road Glide®

Sold

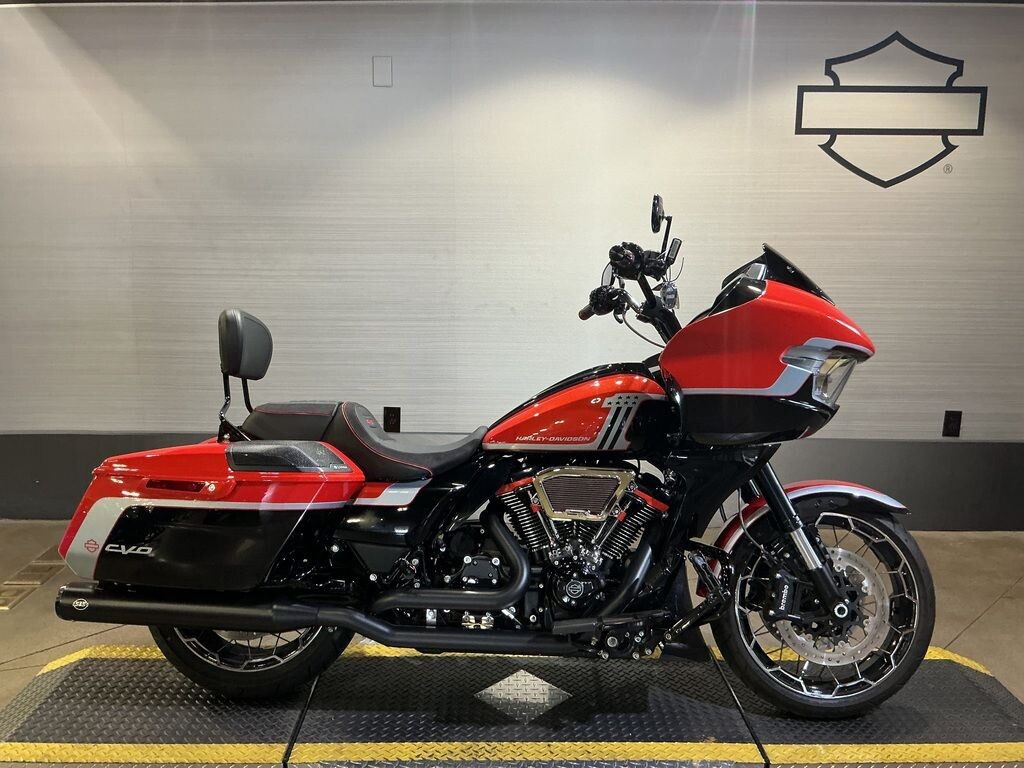

2024 Harley-Davidson® CVO™ Road Glide® Features may include: SHARKNOSE FAIRING The sharknose fairing takes on new life with a sculpted silhouette| fully integrated LED lighting| and a new windshield design. Designed using computational fluid dynamics (CFD) to improve aerodynamic efficiency| the CVO Road Glide design optimizes aero performance and rider comfort with an aggressive new take on the original. SIGNATURE LED LIGHTING Seamlessly integrated| the full LED lighting package optimizes visibility| integrates turn signals| and accentuates the lines of the sharknose fairing| creating a distinctive look that’s instantly recognizable| day or night. WHEELS The CVO Road Glide is fitted with 19-inch front and 18-inch rear| Combo Cast Laced wheels equipped with Tire Pressure Monitoring System (TPMS). FLOW STATE Born from the rich lineage that came before it and sculpted by wind tunnel data analysis| every surface of the CVO Road Glide has been reimagined and refined| creating a seamless visual flow from the tip of the front fender to the tail of the saddlebags. SADDLEBAGS A final extension of the aggressive lines and athletic build of the fairing and fuel tank| the saddlebags increase overall luggage capacity and complete the aggressive stance of the CVO Road Glide. 25TH ANNIVERSARY PAINT & FINISHES Available in color-shifting Copperhead with Warm-Shift pinstripes or Legendary Orange with Raven Metallic and Atlas Silver brushed sections. Each option is finished with color-matched parts and accessories| CVO graphics| and an engraved CVO 25th Anniversary console insert. MILWAUKEE-EIGHT® VVT 121 V-TWIN ENGINE The highest displacement powertrain ever to be factory-installed on a Harley-Davidson Touring motorcycle| the Milwaukee-Eight VVT 121 engine features liquid-cooled cylinder heads| variable valve timing (VVT)| and a new intake tract. The increased displacement produces more power and torque than the Milwaukee-Eight 117 engine| while VVT broadens the overall powerband and improves fuel economy. BRAKES Dual front disc brakes with radially mounted four-piston Brembo™ calipers in the front and a single four-piston Brembo caliper in the rear enhance feel and overall braking performance.

Specifications

Dimensions

add remove
- Length:

  94.9 in
- Seat height, unladen:

  28.1 in
- Rake (steering head):

  26
- Trail:

  6.7 in
- Wheelbase:

  64.0 in
- Tires, front specifications:

  130/60B19 M/C 61H
- Tires, rear specifications:

  180/55B18 M/C 80H
- Fuel Capacity:

  6.0 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  825 lbs
- Weight, in running order:

  862 lb
- Luggage capacity – volume:

  2.2 cu ft (0.062 m³)
- Tire, type:

  Dunlop® Harley-Davidson Series, bias blackwall front and rear
Engine

add remove
- Engine:

  Milwaukee-Eight® VVT 121
- Bore:

  4.1 in
- Stroke:

  4.6 in
- Displacement:

  120.64 in³
- Compression ratio:

  11.4:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-1-2 dual exhaust
Performance

add remove
- Engine torque testing method:

  J1349
- Engine torque:

  139.4 ft-lb
- Engine torque (RPM):

  3,000
- Lean angle, right (deg.):

  32
- Lean angle, left (deg.):

  32
- Fuel economy testing method:

  Estimated City/Hwy
- Fuel economy:

  45 mpg (5.1 l/100 km)
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.593
- Gear ratios (overall) 2nd:

  6.65
- Gear ratios (overall) 3rd:

  4.938
- Gear ratios (overall) 4th:

  4
- Gear ratios (overall) 5th:

  3.407
- Gear Ratios (overall) 6th:

  2.875
Chassis

add remove
- Front fork:

  47 mm Inverted 1x1 Front Forks
- Rear shocks:

  Dual adjustable emulsions suspension with remote preload adjustment on the left shock, and threaded preload on the right shock
- Wheels, front type:

  Combo Cast Laced
- Wheels, rear type:

  Combo Cast Laced
- Brakes, type:

  Dual floating rotors (front), fixed rotor (rear)
- Brakes, caliper type:

  32 mm, 4-piston fixed dual radially mounted front, and single axially mounted rear
Electric

add remove
- Lights (as per country regulation), indicator:

  LED headlamp, tail/stop, front signal lights and rear turn signals
- Gauges:

  Digital gauges integrated within the display
Infotainment

add remove
- Screen size:

  12.3 in
- Infotainment system:

  Skyline™ OS
- Type:

  Full Color TFT
- Watts per channel:

  125
- Speakers:

  4
- Speaker size:

  Two 6.5in fairing speakers, and two 5x7in saddlebag speakers
- Headset specifications (if equipped):

  Harley-Davidson Packtalk Edge wireless Bluetooth® headset
- AM:

  Standard
- FM:

  Standard
- SD Card, Flash Drive and MP3 — via USB Connection:

  Supported
- Languages:

  Arabic, Bahasa (Indonesian), Catalan, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (UK/USA default), Finnish, French (Canada/France), German, Hebrew, Hungarian, Indonesian, Italian, Japanese, Korean, Malay, Norwegian, Polish, Portuguese
- Hands-free mobile phone — via Bluetooth:

  Standard
- Voice recognition: phone functions only:

  Phone dependent
- Voice Recognition Languages: Tuner / Media / Navigation:

  Phone dependent
- Text-to-Speech (TTS) languages:

  Phone dependent
- Rider / passenger intercom:

  Standard (passenger headset sold separately), VOX is available for HD headsets
- Vehicle information screen:

  Standard
- USB:

  USB-C/MTP/iPod/iPhone, any device with proper adapters to the electric power outlet located in the inner fairing storage.
- Bluetooth:

  Phone/Media Player, Headset
